AM3113T

Product Details

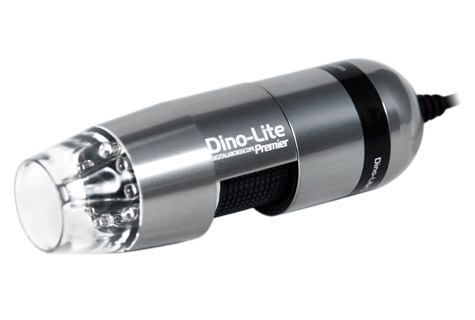

The Dino-Lite Premier AM3113T, which is upgraded from AM3013T for finer magnification adjustment and improved durability, can be ideal but not limited to industrial applications if both the image quality and budget are important factors. Inheriting from AM3013T's clear image, fast frame rate, software capability, and attractive cost-to-performance ratio, the AM3113T can exceed the AM3013T on numerous applications.

SKU: AM3113T

Faster reaction times
The approximate 30 FPS frame rate of AM3113T gives user the least delay to an object’s movement, making it ideal for applications needing to perform tasks under the microscope, e.g. repairing, assembly etc.

Useful range of magnification
The magnification of Dino-Lite, varied with its focus, can be adjusted easily with its knob. It has two ranges of magnifications: lower range from 20x to 50x, and higher range exceeding 200x. It provides users the flexibility to “zoom in” the object optically from about 50x to 200x when the object is at the vicinity of front cover, or to work at lower magnification range with distance from the object.

Releasing the digital power – DinoCapture & DinoXcope
The bundled software, DinoCapture 2.0 for Window or DinoXcope for Mac, bring a lot more possibilities from being digital. Capturing picture or video are within a click; making annotation and drawing cannot be easier; sharing picture/video or making report are no longer a frustrating process. Moreover, the measurement capability, either on picture or live video, extends its application far more than a traditional microscope can do.

Information about working distance and field of view

M	WD	FOV (x)	FOV (y)	DOF
20	51.7	21	15.7	8.02
30	24.1	14	10.5
40	11	10.5	7.9
50	3.8	8.4	6.3	1.95
60	-0.6	7	5.2
200	-0.4	2.1	1.6	1.46
210	0.6	2	1.5
220	1.7	1.9	1.4
230	2.8	1.8	1.4

M = magnification rate WD = working distance FOV = field of view DOF= depth of field Unit = mm

Model	AM3113T Dino-Lite Premier
Interface	USB 2.0
Product Resolution	640x480 pixels (VGA)
Magnification Rate	20x~50x, 200x
Sensor	Color CMOS
Frame Rate	Up to 30fps
Save Formats	Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Movie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Microtouch	Touch sensitive trigger on the microscope for taking pictures
Lighting	8 white LED lights switched on/off by software
Measurement Function	Yes
Calibration Function	Yes
Operating System Supported	Windows XP/7/8/10/11 macOS 10.14 or later
Unit Weight	100g
Unit Dimension	10cm (H) x 3.2cm (D)

Working distance & field of view mm

Magnification	20	30	40	50	60	200	210	220	230
Working Distance	51.7	24.1	11	3.8	-0.6	-0.4	0.6	1.7	2.8
Field of View	21 x 15.7	14 x 10.5	10.5 x 7.9	8.4 x 6.3	7 x 5.2	2.1 x 1.6	2 x 1.5	1.9 x 1.4	1.8 x 1.4
Depth of Field	8.02			1.95		1.46

Working distance & field of view inch

Magnification	20	30	40	50	60	200	210	220	230
Working Distance	2.035	0.949	0.433	0.150	-0.024	-0.016	0.024	0.067	0.110
Field of View	0.827 x 0.618	0.551 x 0.413	0.413 x 0.311	0.331 x 0.248	0.276 x 0.205	0.083 x 0.063	0.079 x 0.059	0.075 x 0.055	0.071 x 0.055
Depth of Field	0.316			0.077		0.057

This product compared to similar products

Product	AM3111 This product	AM3113 Similar product	AM3111T Similar product	AM2111 Similar product	AM4111T Similar product
price	$149	$249	$199	$99	$329
Magnification	10x - 50x, 230x	10x - 50x, 230x	10x - 50x, 230x	10x - 50x, 230x	10x - 50x, 220x
Distance	Standard	Standard	Standard	Standard	Standard
Connectivity	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Resolution	640 × 480 pixels	640 × 480 pixels	640 × 480 pixels	640 × 480 pixels	1280 × 1024 pixels
LEDs	White (8)	White (8)	White (8)	White (4)	White (8)
Polarizer	X	X	X	X	X
Measurement	X	✓	X	X	X
OS	Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5+	Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5+	Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5+	Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5+	Windows XP, Vista, 7, 8, 10, 11 Mac OS 10.5+
